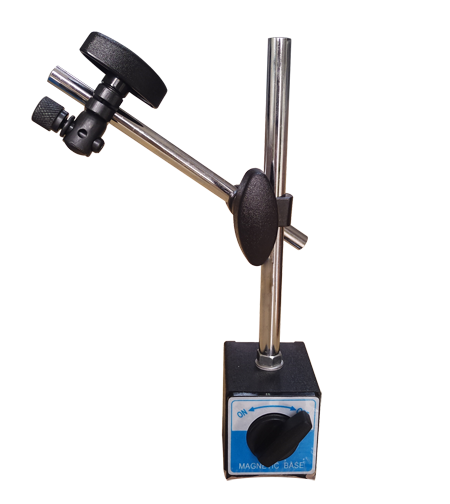

KM-601-01
Feature：
1. Basic type.
2. Magnetic base with ON/OFF switch.
3. Clamp hole: 8&6.5mm(optional: hole 3/8″&5/32″)
4. For dial indicators with lug back or plain back.
5. Main stem:φ12x176mm.
6. Branch stem: φ10x160mm.
7. Tapped hole：M8X1.25mm.
Specification
|
Order No. |
Magnetic Force |
Applicable Holding Stem Dia |
Base(LxWxH) |
|
KM-601-01 |
60kg |
ø8mm, ø6.5mm/ 3/8″, 5/32″ |
58×50×55mm |
|
KM-601-02 |
80kg |
ø8mm, ø6.5mm/ 3/8″, 5/32″ |
60×50×55mm |
