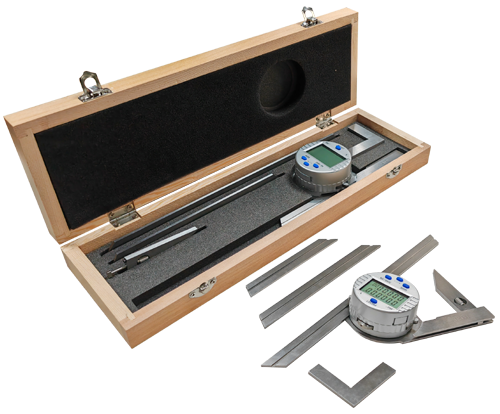

KM-EDP360



Feature:

1. Made of stainless steel.

2. With fine adjustment roll.

3. Display DMS/DD at the same time.

4. Multiple combination of measuring methods.

5. Zero setting at any position within range.

6. Range selection: 1x360°, 2x180°,4x90°.

7. Fine adjustment within 360° range.

8. Data output: Rs232


Specification:

Order No.	Range	Accuracy	Resolution	Work Temp.	Storage Temp.
KM-EDP360	0~360°	±5′	10″	5ºC-40ºC	-20ºC-60ºC
KM-EDPH360	0~360°	±2.5′	10″	5ºC-40ºC	-20ºC-60ºC
