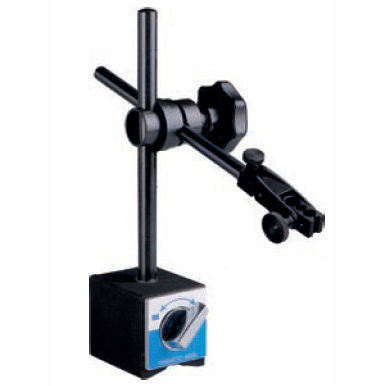

KM-604-01
Feature：
1. Magnetic base with ON/OFF switch.
2. With fine adjustment on the top, higher accuracy.
3. Strong arm lock, more stable.
4. Dovetail groove for test indicators.
5. Clamp hole for both metric and inch indicators.
Specification:
|
Order No. |
Magnetic Force |
Applicable Holding Stem Dia. |
Base(L×W×H) |
Main Arm |
Sub Arm |
|
80kg |
6mm /8mm, 3/8’’/Dovetail |
60×50×55mm |
Φ12x175mm |
Φ10x165mm |
|
|
KM-604-02 |
80kg |
6mm /8mm, 3/8’’/Dovetail |
60×50×55mm |
Φ14x200mm |
Φ12x165mm |
|
KM-604-03 |
100kg |
6mm /8mm, 3/8’’/Dovetail |
73×50×55mm |
Φ16x250mm |
Φ16x200mm |
|
KM-604-04 |
130kg |
6mm /8mm, 3/8’’/Dovetail |
117×50×55mm |
Φ18x350mm |
Φ16x200mm |
