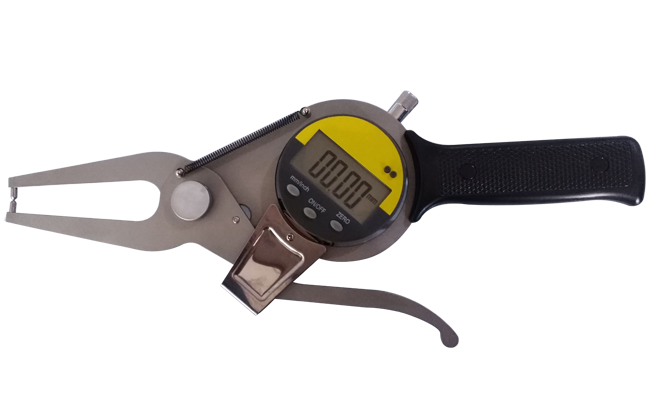

KM-D601-20
Características:
1.Paramedir el díametro externo, el díametro externo de la fonda de ranura anular y la parte de profundidad especial,etc.
2. Medición de métrica y pulgada.
Especificación:
Pedido No. |
Rango |
Resolución |
Esquema Dimensional |
||
A |
φB |
L |
|||
KM-D601-20 |
0~20mm/0~0.8″ |
0.01mm/0.0005″ |
6 |
3 |
60 |
KM-D602-40 |
20~40mm/0.8~1.6″ |
0.01mm/0.0005″ |
6 |
3 |
60 |
KM-D603-60 |
40~60mm/1.6~2.4″ |
0.01mm/0.0005″ |
6 |
3 |
55 |
KM-D604-80 |
60~80mm/2.4~3.2″ |
0.01mm/0.0005″ |
6 |
3 |
55 |
KM-D605-100 |
80~100mm/3.2~4″ |
0.01mm/0.0005″ |
10 |
3 |
55 |
KM-D606-120 |
100~120mm/4~4.8″ |
0.01mm/0.0005″ |
10 |
3.2 |
95 |
KM-D607-140 |
120~140mm/4.8~5.6″ |
0.01mm/0.0005″ |
10 |
3.2 |
95 |
KM-D608-160 |
140~160mm/5.6~6.4″ |
0.01mm/0.0005″ |
10 |
3.2 |
95 |
KM-D609-180 |
160~180mm/6.4~7″ |
0.01mm/0.0005″ |
10 |
3.2 |
95 |
KM-D610-200 |
180~200mm/7~8″ |
0.01mm/0.0005″ |
10 |
3.2 |
95 |
KM-D611-220 |
200~220mm/8~8.8″ |
0.01mm/0.0005″ |
10 |
3.2 |
160 |
KM-D612-240 |
220~240mm/8.8~9.6″ |
0.01mm/0.0005″ |
10 |
3.2 |
160 |
KM-D613-260 |
240~260mm/9.6~10″ |
0.01mm/0.0005″ |
10 |
3.2 |
180 |
KM-D614-280 |
260~280mm/10~11″ |
0.01mm/0.0005″ |
10 |
3.2 |
200 |
KM-D615-300 |
280~300mm/11~12″ |
0.01mm/0.0005″ |
10 |
3.2 |
200 |
